Garrett Chip Installation Page 7.6.2
1.8T PSOP Chip -- Soldered
Photos courtesy of Des Brown -- Durban, South Africa

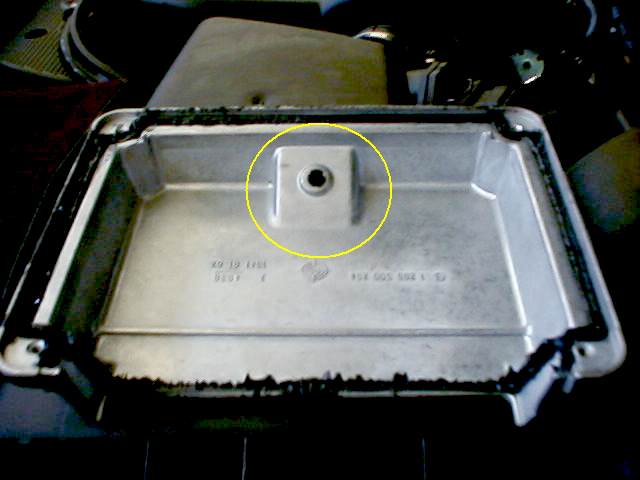

Step 8:  IMPORTANT!   Check fit of ECU cover.  Some covers have an internal "bump" like this:


This "bump" may come in contact with the pins on the top of the encryptor module and short them!  It may be necessary to "trim" a few of the pins like this:

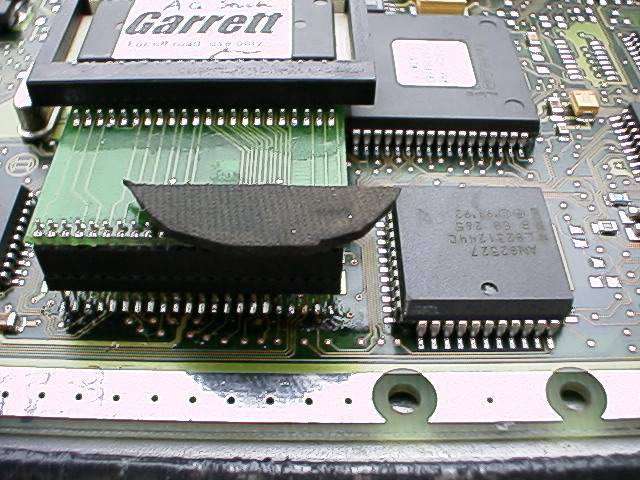

And for added safety, add a piece of rubber or other suitable insulating material like this:
